English
Views: 0 Author: Site Editor Publish Time: 2026-03-20 Origin: Site
Hemp-core wire rope, commonly classified as fiber-core (FC) wire rope, relies on its internal core for structural support, lubrication storage, and shock absorption. When the core loses its ability to support the strands and retain lubricant, the rope can deteriorate rapidly. In serious cases, core failure can lead to premature wire rope damage, sudden rope breakage, equipment downtime, and even safety accidents.
For lifting equipment, cranes, hoists, and other industrial systems, understanding why a hemp core fails is essential for preventing costly maintenance issues and operational risks.
The hemp core, or fiber core, is not just a filler inside the rope. It plays several critical roles:
It supports the rope structure from the inside
It stores and releases lubricant to reduce internal friction
It cushions vibration and absorbs shock loads
It helps the strands maintain proper position under load
Once the core becomes dry, crushed, broken, or contaminated, the rope loses internal stability. This usually leads to strand loosening, deformation, increased internal wear, corrosion, and a much shorter service life.
Insufficient lubrication is one of the most common reasons for fiber-core failure. When the core loses oil, it becomes dry and brittle, and its lubricant storage function disappears. Without enough internal lubrication, the steel wires rub against each other, generating heat and accelerating wear. Over time, lubricant may carbonize, degrade, or leak out, leaving the core unable to protect the rope from internal friction.
Excessive load, sudden starts and stops, and impact loading can crush or damage the hemp core. Under repeated overload conditions, the steel strands compress the core until it collapses, breaks apart, or is forced outward. Once the core is no longer supporting the rope structure, strand separation and distortion become much more likely.
Repeated bending is especially damaging when the sheave or drum diameter is too small, when the rope is forced into reverse bends, or when it passes through multiple bending points. These conditions create repeated shear stress inside the rope, gradually breaking down the fiber core. As the core weakens, the rope becomes more vulnerable to strand loosening, birdcaging, internal wire breaks, and uneven load distribution.
Moisture, salt spray, acidic or alkaline environments, and high temperatures can all damage a hemp core. In humid conditions, the core may absorb water, swell, rot, or develop mold. In corrosive environments, internal corrosion can start without obvious external warning signs. High temperatures can dry out the lubricant stored in the core, especially in hot regions or outdoor applications exposed to strong heat for long periods.
Poor installation practices can cause immediate internal stress inside the rope. Twisting, kinking, hard bending, rope groove mismatch, and foreign material blocking the rope path can all create local crushing and stress concentration. If the rope's internal stress is not properly released during installation, the rope may operate under residual tension, which accelerates wear and structural instability.
In some cases, the problem begins with the rope itself. Low-quality fiber material, insufficient oil impregnation, uneven core diameter, or poor manufacturing consistency can leave the core with inadequate support and lubrication capacity from the start. Even under normal service conditions, such ropes may fail earlier than expected.
When the fiber core fails, the damage is not limited to the core alone. The entire rope structure becomes unstable, which can result in several serious consequences.

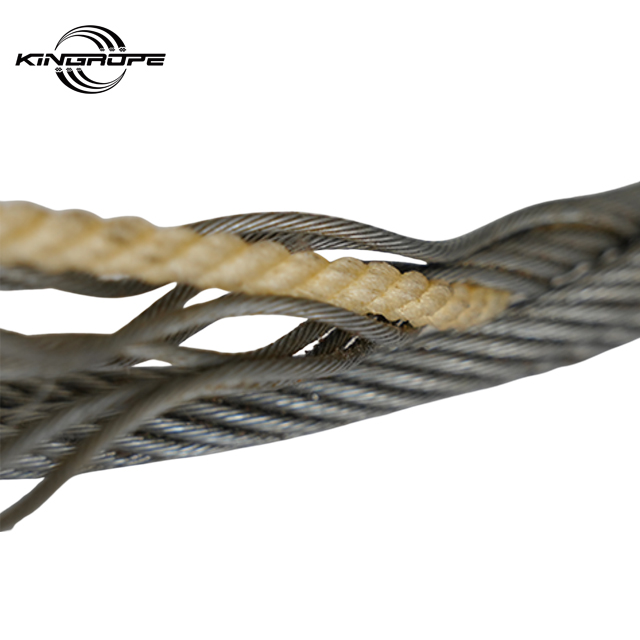

One of the clearest warning signs is strand loosening or localized rope deformation. In severe cases, the rope may show wave-like distortion, strand opening, or visible core extrusion. At this stage, the internal structure has already been significantly damaged.
Without a healthy core to supply lubricant and support the rope internally, internal wire-to-wire friction increases sharply. This leads to hidden internal broken wires, accelerated wear, and corrosion that may not be visible from the outside.
As the core loses volume and support capacity, the rope diameter may decrease. This causes uneven load sharing among strands, which further weakens the rope and raises the risk of sudden failure.
Once lubrication fails and dry friction begins, heat and wear increase rapidly. The rope's effective safety margin drops, and the risk of unexpected rope breakage rises. In lifting applications, this can lead to dropped loads, equipment damage, injury, or fatal accidents.
Overloading should be strictly avoided. Shock loading, side pulling, sudden starting, and sudden stopping all place abnormal stress on the core and rope structure. Proper operating discipline is one of the most effective ways to extend service life.
The rope should be installed without twisting, kinking, or hard bends. Sheaves and drums must match the rope design and application requirements. Correct groove geometry and proper bending diameter are essential to prevent crushing and excessive fatigue.
A wire rope should be lubricated with a lubricant specifically designed for wire rope service. The goal is not only to coat the outside but also to maintain lubrication within the core and between strands. In high-temperature, high-humidity, or corrosive environments, lubrication intervals should be shortened.
The rope should be protected from water intrusion, chemical exposure, welding heat, and sustained high temperatures. In coastal or tropical environments, extra attention should be given to moisture control and corrosion prevention, as water entering a dry fiber core can remain trapped and cause internal deterioration.
Routine inspection should focus on the warning signs most closely associated with core failure, including:
visible core exposure or extrusion
strand loosening
local deformation
unusual oil loss or dryness
rope diameter reduction
abnormal wear patterns
Inspection should include both visual checks and close monitoring of rope behavior during operation.
If the rope shows core extrusion, severe strand opening, fiber debris shedding, or major structural instability, it should be removed from service immediately. Continued operation after clear core failure signs can result in catastrophic damage.
A practical case involved two machines that had both been fitted with new wire ropes shortly before the Lunar New Year holiday shutdown. After returning to service, the ropes had been used for only about two weeks when multiple sections on both machines began to show strand loosening.
An on-site investigation was arranged with the equipment manufacturer's after-sales team. During the inspection, it was found that the top sheaves had previously been repaired and replaced, but the new sheave model and diameter did not match the original design requirements. As a result, the wire ropes were repeatedly bent and squeezed over an excessively small diameter during operation.
This repeated small-radius bending caused abnormal fatigue and structural stress within the ropes, leading to premature strand opening in multiple areas. After confirming the root cause, the incorrect sheaves were replaced with properly sized components, and the damaged wire ropes were replaced again. The incident resulted in repair and replacement losses amounting to tens of thousands of yuan.
This case highlights an important lesson: even a newly installed wire rope can fail quickly if related components such as sheaves, drums, or grooves do not meet the correct specifications. Wire rope performance depends not only on rope quality, but also on system compatibility, installation accuracy, and maintenance discipline.
Proper maintenance can save a significant amount of repair cost and help avoid production interruptions. Lubrication is especially important for hemp-core wire rope. Once a dry fiber core absorbs rainwater or moisture, it becomes very difficult to dry completely. Trapped moisture may then cause internal corrosion that cannot be detected easily from the outside.
That is why external appearance alone is not enough to judge rope condition. A rope that looks acceptable on the surface may already be suffering from serious internal deterioration. Regular lubrication, correct inspection, and timely replacement are essential for maintaining both safety and service life.
Hemp-core wire rope failure usually begins inside the rope long before severe external damage becomes visible. The most common causes include poor lubrication, overload, repeated bending fatigue, environmental damage, improper installation, and manufacturing defects. Once the fiber core loses its support and lubrication functions, the rope can deteriorate quickly and may fail without much warning.
For operators and maintenance teams, the best prevention strategy is straightforward: use the rope correctly, lubricate it regularly, inspect it carefully, and make sure related components such as sheaves and drums match the original design. In lifting and hoisting applications, preventive maintenance is far less expensive than unexpected failure.
