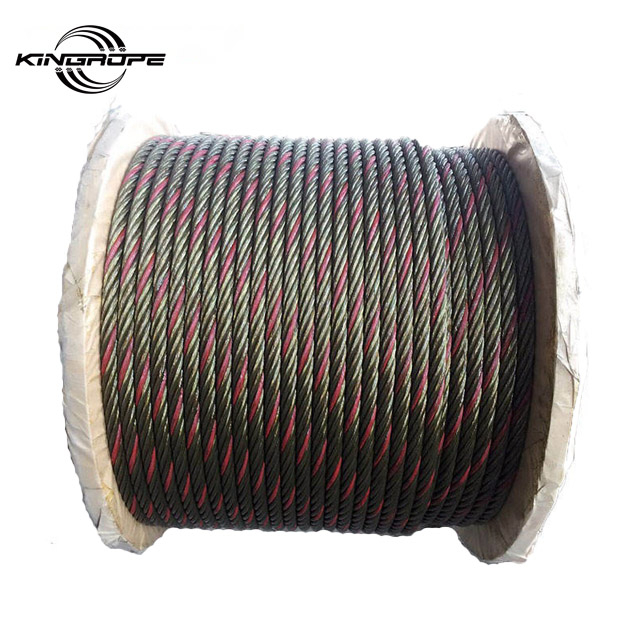

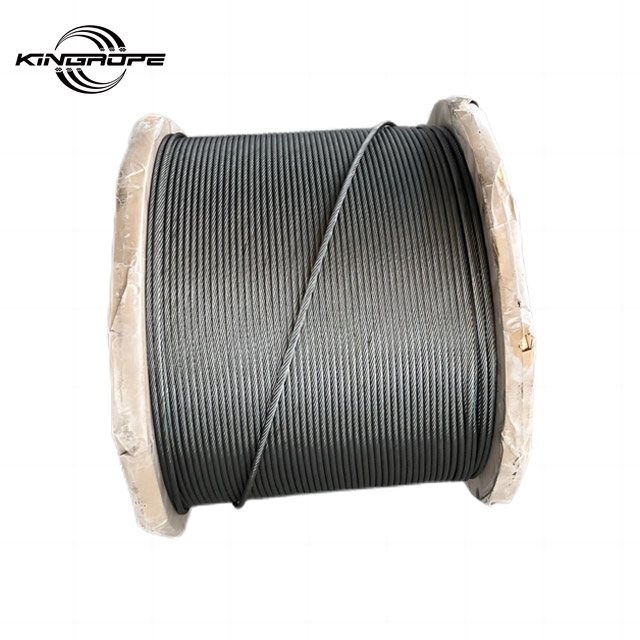

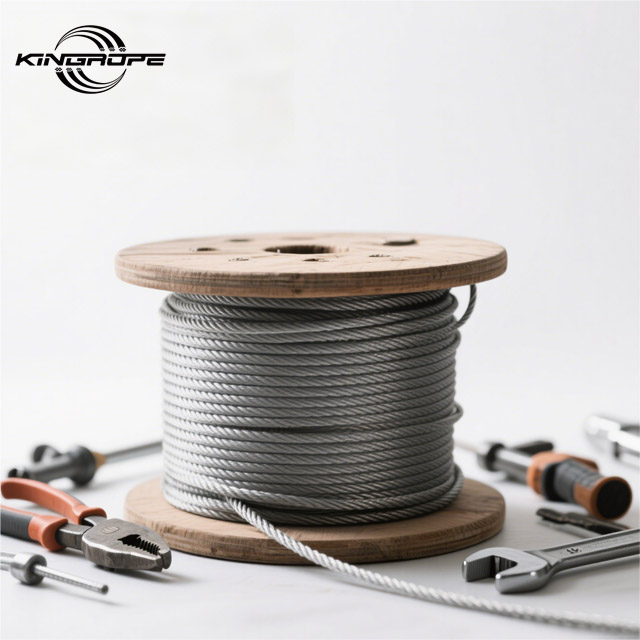

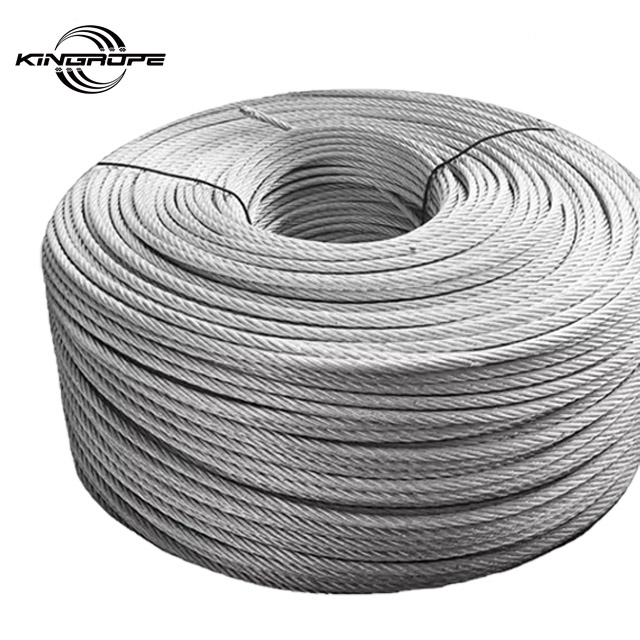

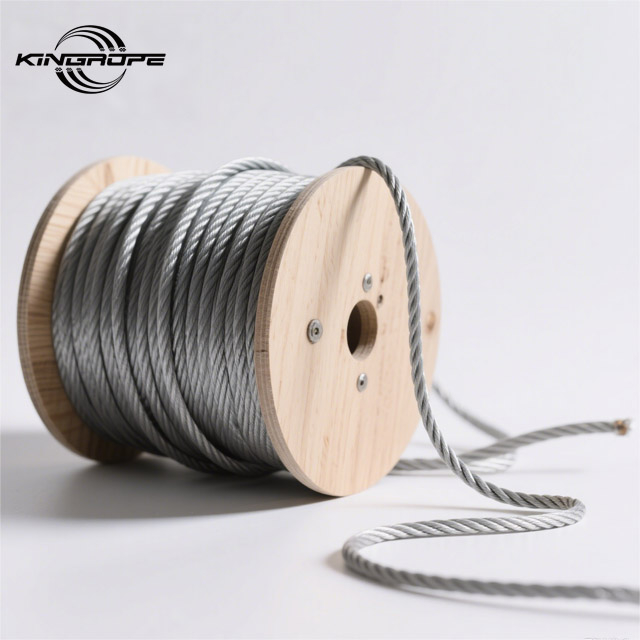

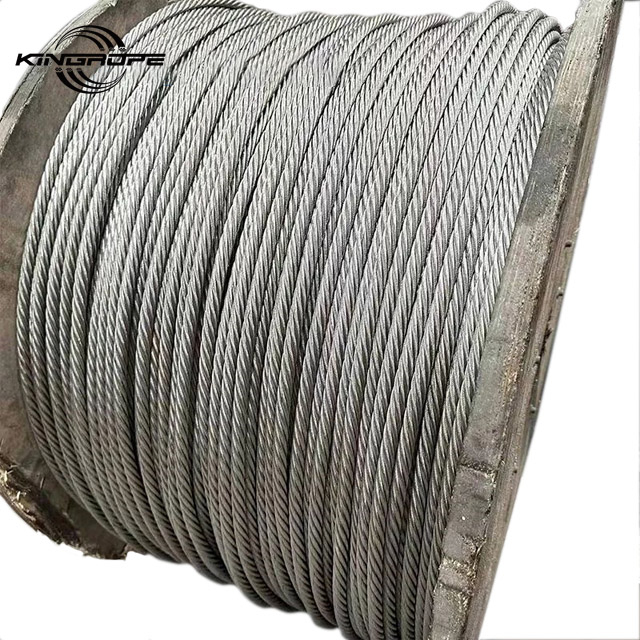

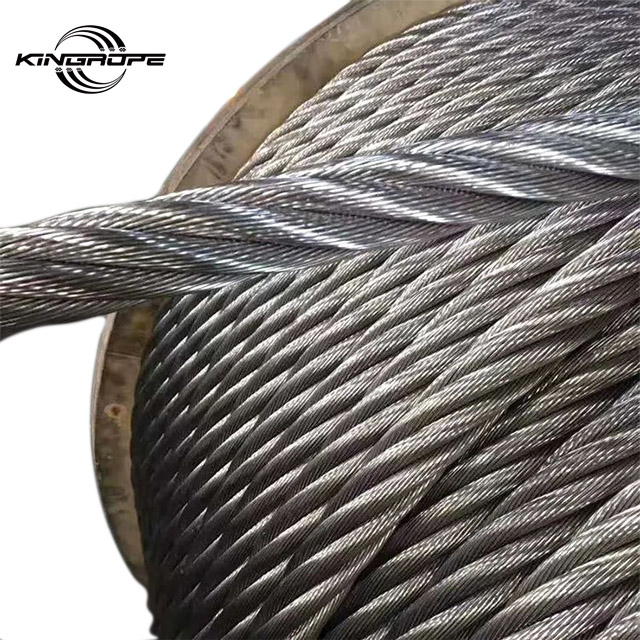

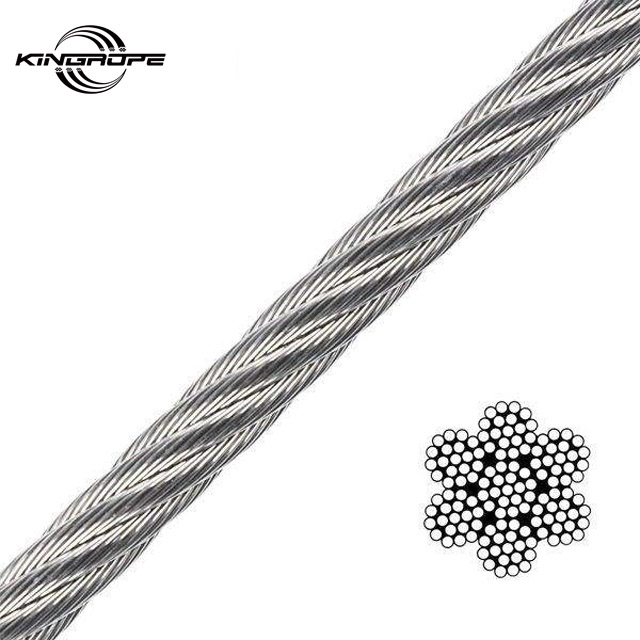

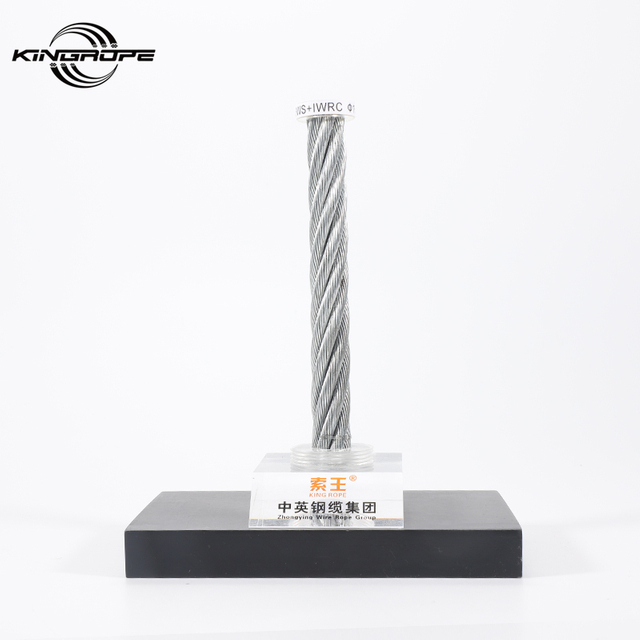

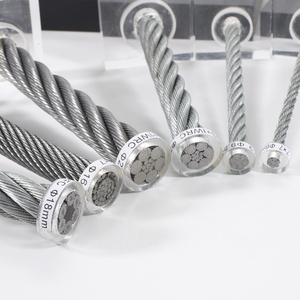

The corporation mainly concentrates on producing different constructions of ungalvanized & galvanized steel wire rope, point contact, line contact, and surface contact wire rope, plastic-coated wire rope, phosphatized and galvanized wire, sling, and other metal products.
about
ABOUT ZHONGYING
WE FOCUS ON PRODUCING WIRE ROPE AND METAL PRODUCTS
Jiangsu Zhongying Wire Rope Group Co.,Ltd was established in 2003, which specializes in producing wire rope and metal products. The Group has three factories and one import & export department (Power Machinery). Coving an area of 210000 square meters, the company has over 500 employees, boasting an annual output beyond 50000 tons. Rich experience and sufficient assets make the group more competitive among other counterparts.
SPECIALIZED IN PRODUCT
advantage1
Great value enjoyment
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
READ MORE
advantage2
First-rate service
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
READ MORE
advantage3
First-class quality
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
READ MORE
advantage4
Economy is more affordable
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
READ MORE

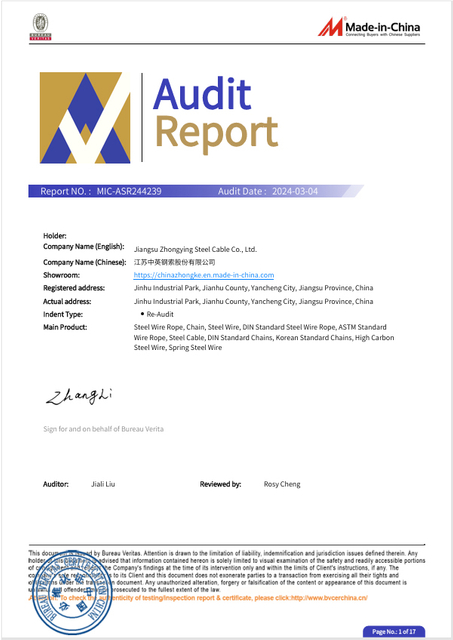

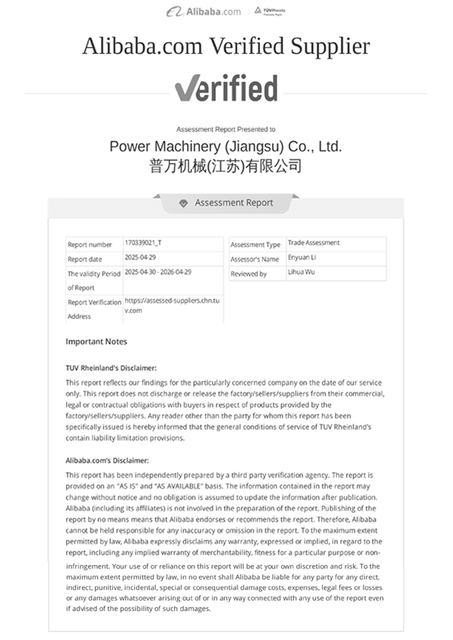

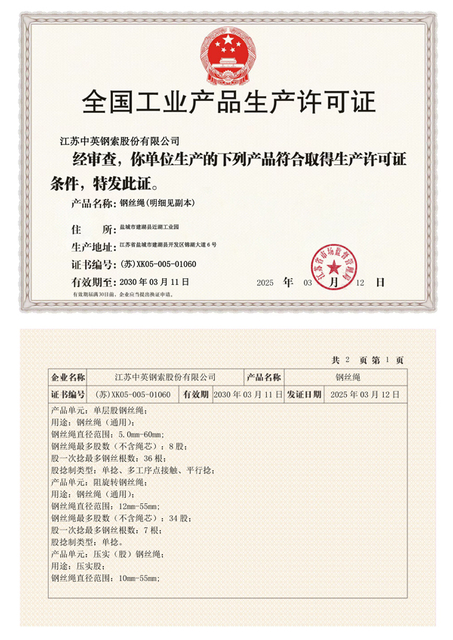

COMPANY CERTIFICATE

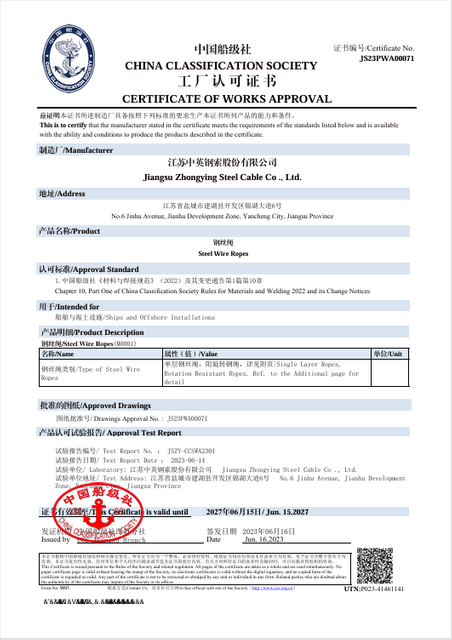

  • Certificate of Works Approval
  • Safety certificate

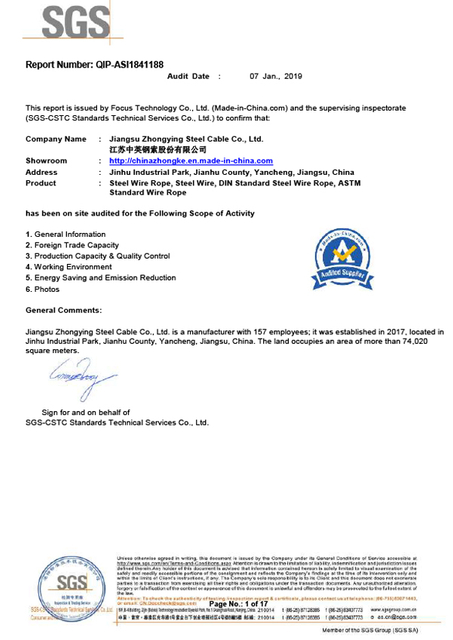

  • SGS Product certification
  • ISO Product certification
  • ABS Product certification
  • ABS Product certification
FAQ
FREQUENTLY ASKED QUESTIONS
TROUBLESHOOTING GUIDE
During the last 20 years, Zhongying Steel Cable has always focused on the research and production of high-performance wire rope. The quality is the first mission of Zhongying. Every metal product is made by heart.

  • P35 Troubleshooting Problem ①

    Mechanical damage caused by the rope contacting the structure of the installation on which it is operating or an external structure-usually of a localised nature。
    Cause/Action
    >Generally results from operational conditions.
    >Check sheave guards and support/guide sheaves to ensure that the rope has not “jumped out” of the intended reeving system.
    >Review operating conditions.

  • P35 Troubleshooting Problem ②

    Opening of strand in rotation resistant,low rotation and parallel closed ropes-in extreme circumstances the rope may develop a “birdcage distortion” or protrusion of inner strands.
    Note-rotation resistant and low rotation ropes are designed with a specific strand gap which may be apparent on delivery in an off tension condition.These gaps will close under load and will have no effect on operational performance of the rope.
    Cause/Action
    >check sheave and drum groove radii using sheave gauge to ensure that they are no smaller than nominal rope radius +5% ZhongYing recommends that the sheave and drum groove radii are checked prior to any rope installation.
    >Repair or replace drum/sheaves if necessary.
    >Check fleet angles in the reeving system-a fleet angle in excess of 1.5 degrees may cause distortion.
    >Check installation method-turn induced during installation can cause excessive rope rotation resulting in distortion.
    >Check if the rope has been cut “on site” prior to installation or cut to remove a damaged portion from the end of the rope.If so,was the correct cutting procedure used?Incorrect cutting of rotation resistant,low rotation and parallel closed rope can cause distortion in operation.
    >Rope may have experienced a shock load.

  • P35 Troubleshooting Problem ③

    Broken wires or crushed or flattened rope on lower layers at crossover points in multi-layer coiling situations.
    Wire breaks usually resulting from crushing or abrasion.
    Cause/Action
    >Check tension on underlying layers.ZhongYing recommends an installation tension of between 2% and 10% of the minimum breaking force of the wire rope,Care should be taken to ensure that tension is retained in service,Insufficient tension will result in these lower layers being more prone to crushing damage.
    >Review wire rope construction.ZhongYing wire ropes are more resistant to crushing on underlying layers than conventional rope constructions.
    >Do not use more rope than necessary.
    >Check drum diameter.Insufficient bending ratio increases tread pressure.

  • P35 Troubleshooting Problem ④

    Wires looping from strands
    Cause/Action
    >Insufficient service dressing.
    >Consider alternative rope construction.
    >If wires are looping out of the rope underneath a crossover point,there may be insufficient tension on the lower wraps pm the drum.
    >Check for areas of rope crushing or distortion.
NEWS CENTER
LATEST NEWS AND BLOG POSTS
Latest news and blog posts
Industry News
What should be paid attention to when using wire rope buckle
01 December 2022

The relationship between wire rope buckle and wire rope is very close, which is widely used in hoisting. What problems should we pay attention to when using this product?First of all, in the process of our use, we need to tighten some of the u-shaped bolts of the product, and we need to press the in

/ READ MORE
Industry News
The performance of elasticity reduction of stainless steel wire rope
24 November 2022

1. The diameter of stainless steel wire rope is reduced.2. The linear distance of the lay distance of stainless steel wire rope will be extended.3. Each part of stainless steel wire rope is compressed, so there will be no gap between adjacent strands.4. Fine brown powder will appear in the concave o

/ READ MORE
Industry News
Inspection and scrapping of wire rope
17 November 2022

During the hoisting process of the crane, the steel wire rope constantly passes through the pulley and drum groove, which is not only squeezed by tension and friction, but also subjected to torsion and other effects. When the steel wire rope passes through a series of pulleys, it is constantly subje
