Choosing the correct wire rope diameter is critical for equipment safety, performance, and service life.
This guide explains how to scientifically select and match wire rope diameters according to working conditions, load requirements, and international standards — helping you make the right choice for every application.

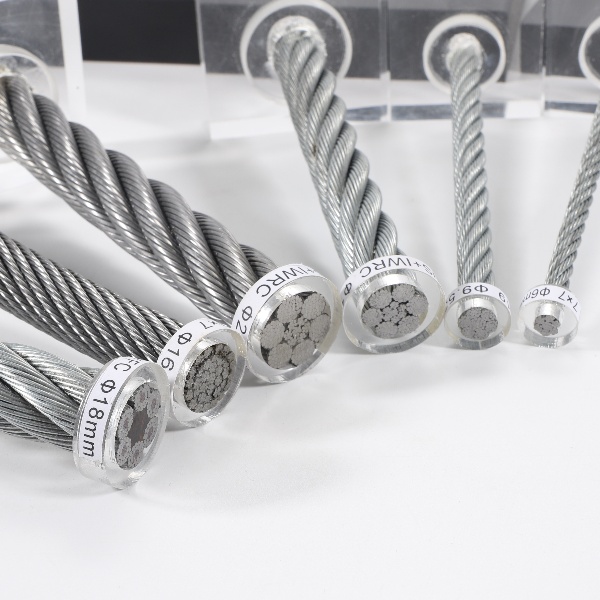

Wire ropes are classified into three main diameter ranges based on their use scenarios:
| Diameter Range | Typical Usage | Example Equipment |
| <8mm (Small) | Light-duty lifting, automotive, or aviation cables | Heavy-duty mining, marine, offshore use |
| 8–60mm (Medium) | Light-duty lifting, automotive, or aviation cables | Tower cranes, construction hoists |
| >60mm (Large) | Heavy-duty mining, marine, offshore use | Mine hoists, ship loading systems |
Most industrial requirements fall between 8mm and 60mm, balancing strength, flexibility, and cost.
Residential elevators: 10mm main rope
Commercial/passenger elevators: 12–13mm
High-speed elevators: composite ropes; diameter ≥ 1/40 of traction sheave diameter
General lifting: 12–22mm, structure 6×37
Port cranes and spreaders: above 32mm, multi-layer strand construction
Aviation cables: 1–3mm galvanized ropes
Mining hoists: diameter ≥ 1/500 of shaft depth
| Criterion | Engineering Rule | Notes |
| Safety Factor | 5–8× for dynamic loads, 3–5× for static loads | Account for shock and fatigue |
| Structure Match | Use anti-rotation ropes (e.g. 18×7) for winches | Use wire-contact types (e.g. 6×36WS) for abrasion resistance |
| Compliance | Elevator ropes ≥8mm (GB 8903); sheave ≥40× rope diameter | Follow ISO 4309 and GB standards |
| Nominal Diameter (mm) | Breaking Load (kN)* | Common Structure | Typical Use |
| 6 | 25 | 6×19 | Small hoist |
| 10 | 60 | 6×37 | Elevator |
| 16 | 145 | 6×36WS | Tower crane |
| 22 | 260 | 6×36WS | Port crane |
| 32 | 530 | 6×36WS | Offshore lifting |
| 60 | 1500 | 6×61 | Mine hoist |
“Bigger is safer” – not always true. Oversized ropes cause more friction and reduce flexibility.
Ignoring load direction. Multi-layer winches require anti-rotation ropes.
Overlooking environment. Use stainless steel ropes in corrosive or marine conditions.
Skipping inspection intervals. Even the strongest ropes degrade under repeated stress.
Selecting the right wire rope diameter ensures safety, efficiency, and long service life.
By understanding load conditions, environmental factors, and structural compatibility, you can confidently choose the right rope — whether it’s a stainless steel, galvanized steel, or industrial cable type.
