Introduction
Non rotating wire rope (also called rotation resistant wire rope or multi-strand wire rope) is widely used in lifting equipment where load rotation must be minimized. In applications such as tower cranes, hoisting systems, and lifting machinery, ordinary wire ropes may twist under load, causing the lifted object to spin.
Non rotating wire rope is specially designed to reduce or eliminate rotational forces, making lifting operations safer, more stable, and more reliable.
Structure of Non Rotating Wire Rope
Non rotating wire rope belongs to the multi-layer strand steel wire rope category. Early common constructions include:
34×7 wire rope
35×7 wire rope
36×7 wire rope

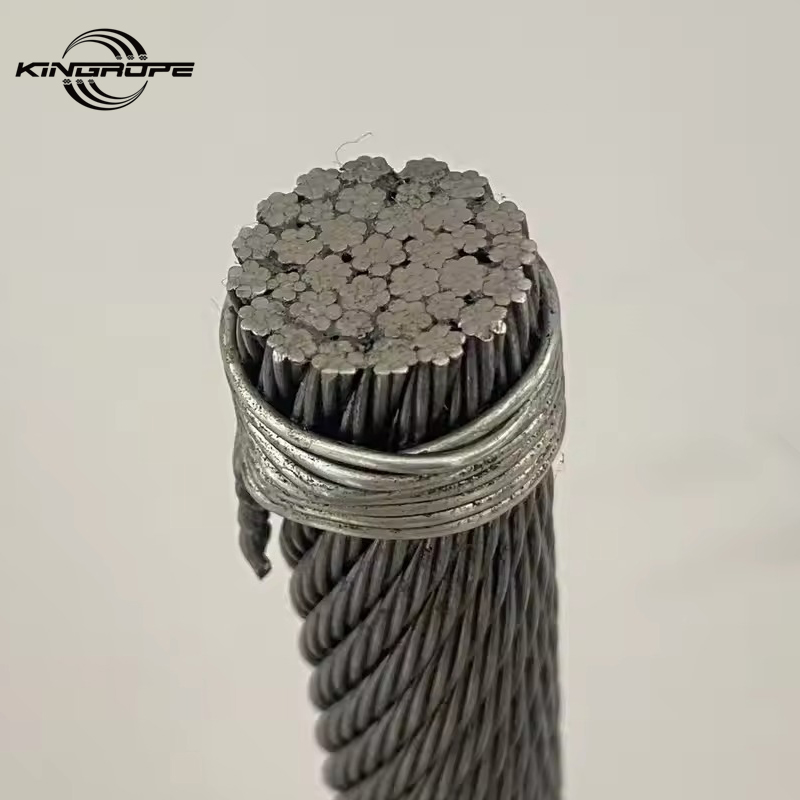

Among them, 35W×7 wire rope is considered one of the most optimized structures.
These ropes are manufactured using multiple small strands that form several layers within the rope. The strands are arranged so that:
The inner layer and outer layer are twisted in opposite directions
Small strands are typically in a line contact configuration
Different wire diameters can be used to increase packing density
This design significantly increases the breaking strength and wear resistance of the rope.
Compared with traditional 6×19 or 6×37 steel wire rope, a non rotating wire rope of the same diameter generally provides:
About 30% higher breaking strength
About 30% better wear resistance
Much longer service life
Because of this, non rotating wire ropes are widely used in heavy lifting operations.
Advantages of Non Rotating Wire Rope
Non rotating wire rope offers several important benefits in industrial lifting systems.
1. Reduced Rotation During Lifting
The special multi-strand design prevents the rope from spinning when loaded. This keeps the suspended load stable and prevents dangerous rotation.
2. Higher Breaking Strength
Due to the higher wire density and optimized strand structure, the rope can achieve higher tensile strength compared with traditional six-strand ropes.
3. Improved Wear Resistance
The multi-strand structure distributes load more evenly across the rope, reducing stress concentration and improving abrasion resistance.
4. Longer Service Life
Because stress is evenly distributed and the structure is more stable, non rotating wire ropes usually last significantly longer than standard 6-strand wire ropes.
5. Safer Operation
Even if the rope experiences failure in extreme cases, the structure helps prevent sudden recoil or whipping. The rope tends to remain in place instead of jumping off the sheave or drum, which improves operational safety.
Working Principle of Non Rotating Wire Rope
The working principle of non rotating wire rope is based on the opposite twisting directions of the rope’s internal and external strands.
The inner layer strands are twisted in one direction
The outer layer strands are twisted in the opposite direction
When the rope is under load, the torque generated by one layer is counteracted by the torque of the other layer. This balance of forces significantly reduces the tendency of the rope to rotate, preventing the load from spinning in the air.
However, if the rope’s free end is allowed to rotate excessively in the opposite direction, the following may occur:
The inner strands may tighten and shorten
The outer strands may lengthen
The rope may expand outward
If this process continues, the inner and outer layers may separate, which can damage the rope structure and cause the load to concentrate on the inner strands. This reduces the rope’s safety factor and service life.
Design Considerations for Non Rotating Wire Rope
During the design and manufacturing process, engineers must carefully ensure that:
The torque of the inner and outer strand layers is balanced
The rope structure prevents separation between layers
Load distribution remains uniform
A well-designed structure such as 35W×7 provides improved stability and is widely considered a more reasonable configuration for non rotating wire rope.
Applications of Non Rotating Wire Rope
Non rotating wire rope is commonly used in equipment where load stability is critical, including:
Tower cranes
Mobile cranes
Hoisting systems
Port lifting equipment
Construction lifting machinery
Mining hoists
These applications require ropes that maintain stability and minimize load rotation during lifting.
Conclusion
Non rotating wire rope is a specialized multi-strand steel wire rope designed to minimize rotational forces during lifting operations. With structures such as 34×7, 35×7, and 36×7, these ropes offer higher strength, improved wear resistance, and significantly longer service life compared with traditional six-strand wire ropes.
Because of their balanced torque design and stable performance, non rotating wire ropes are widely used in modern lifting equipment and provide a safe, reliable solution for heavy lifting applications.
