How To Connect Two Steel Wire Ropes Using Steel Wire Rope Clamps: Methods And Advanced Recommendations

When it comes to connecting two steel wire ropes, steel wire rope clamps are essential for ensuring a secure and reliable connection. Below are two commonly used methods for connecting steel wire ropes, based on product guidelines and practical experience, along with advanced tips for selecting the right type of steel wire rope clamp.

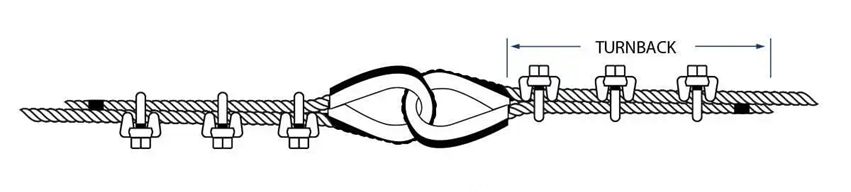

Method 1: Interlocking Return-Eye Method (Preferred Method)

The interlocking return-eye method is considered the best approach for connecting two steel wire ropes. This method involves using steel wire rope clamps to secure the return-eye loops. The steps are as follows:

• First, form an interlocking return-eye loop at the end of each rope.

• Then, use the specified number of steel wire rope clamps to secure each loop tightly.

This method ensures a strong, reliable connection and is ideal for heavy-duty applications where the rope needs to withstand significant tension.

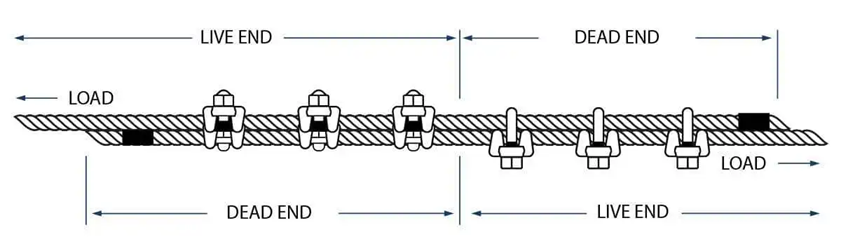

Method 2: Parallel Splice Method (Alternative Method)

The parallel splice method is an alternative approach to connecting steel wire ropes. In this method:

• Place the two rope ends parallel to each other, with an overlap length that is twice the return-eye length specified in the application instructions.

• Secure the ropes by installing the minimum number of steel wire rope clamps at the rope ends, as specified in the guidelines.

Ensure that the clamp spacing, installation torque, and other operational requirements are followed as per the recommendations to maintain the integrity of the connection.

Choosing the Right Steel Wire Rope Clamp: Advanced Recommendations

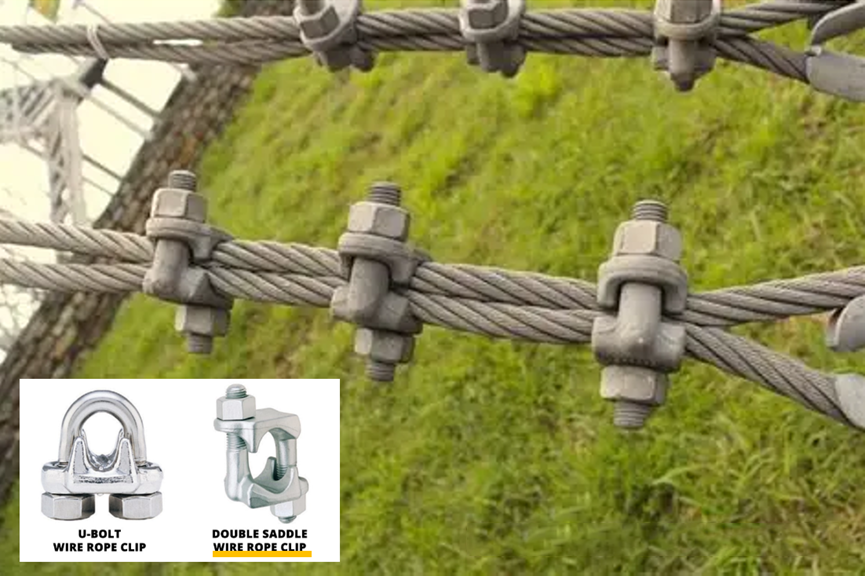

If you're still unsure about the correct installation direction of a "U-bolt steel wire rope clamp," consider exploring the advantages of the double saddle steel wire rope clamp.

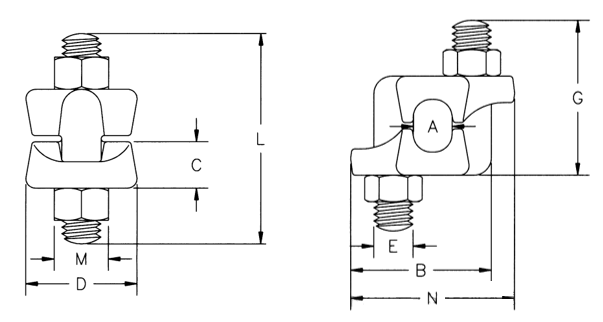

The core structure of the double saddle steel wire rope clamp lies in its symmetrical design. Each saddle has a groove for the rope and is fastened with bolts and nuts. This design eliminates the need for distinguishing between the "U-bolt" and "single saddle" of traditional clamps. Here are the key advantages of using double saddle steel wire rope clamps:

1.Even Force Distribution & Better Protection for the Rope:

The symmetrical clamping force of the double saddle ensures that the force is distributed evenly, helping to prevent localized stress damage caused by bending, which is common with traditional U-bolt clamps. This design provides better protection for the steel wire rope.

2.No Directional Restrictions:

Unlike traditional U-bolt clamps, which require the "saddle on the live end" and "U-bolt on the dead end" (i.e., “no saddle on the dead rope”), the double saddle design is fully symmetrical. This means that installation does not require strict directionality and can be adapted to different spatial configurations. This flexibility reduces the risk of installation errors.

3.Enhanced Anti-Loosening Performance:

The double-headed bolts and nuts offer superior fastening strength. Under vibration conditions, this design is more resistant to loosening, ensuring a more secure connection over time.

Steel wire rope clamps play a crucial role in ensuring secure connections between steel wire ropes. The interlocking return-eye method is the preferred approach, but the parallel splice method is a reliable alternative. When choosing steel wire rope clamps, consider the advantages of the double saddle design for improved force distribution, flexibility during installation, and better anti-loosening performance. By selecting the right steel wire rope clamp and installation method, you can ensure a stronger, safer connection for your lifting and rigging operations.
