Steel wire rope is widely used in lifting, hoisting, mining, elevators, cranes, bridges, and many other load-bearing applications. Because it works under heavy loads and repeated bending conditions, regular inspection is essential for safety and service life.
A complete steel wire rope inspection usually includes visual inspection, internal defect detection, dimensional measurement, and mechanical performance testing. These inspection items help users identify potential risks such as broken wires, wear, corrosion, deformation, and strength loss.
Visual inspection is the most basic and commonly used method for checking the condition of steel wire rope. It can quickly identify surface defects and visible damage.
Broken wire inspection focuses on the number, location, and type of visible broken wires. Inspectors usually check whether the broken wires are concentrated in one area or distributed evenly along the rope.
Common types of broken wires include fatigue breaks, wear-related breaks, and corrosion-related breaks. A high number of broken wires may indicate serious fatigue or excessive stress.
During operation, steel wire rope often rubs against drums, sheaves, pulleys, or other contact surfaces. This may cause surface wear and reduce the rope diameter.
Wear inspection usually includes measuring the diameter reduction and checking whether the outer wires have become flattened or seriously worn. Excessive wear can reduce the metallic cross-section and weaken the rope’s load-bearing capacity.
Corrosion is another important factor affecting wire rope safety. Inspectors need to check whether the rope surface has rust, pitting, discoloration, or other signs of corrosion.
In humid, marine, chemical, or outdoor environments, corrosion may develop faster. If corrosion is severe, the strength and flexibility of the steel wire rope may be greatly reduced.
Steel wire rope deformation can seriously affect its performance. Common deformation problems include kinks, bends, birdcage deformation, local diameter increase, local diameter reduction, crushing, and strand looseness.
Once serious deformation appears, the internal structure of the rope may already be damaged, even if the rope has not completely broken.
Some defects cannot be found by visual inspection alone. Internal broken wires, hidden corrosion, and core damage may exist inside the rope. For this reason, non-destructive testing methods are often used.
Internal broken wires can be detected by non-destructive testing methods such as magnetic flux leakage testing, electromagnetic inspection, or ultrasonic testing.
These methods help identify hidden wire breaks inside the rope, especially in multi-layer strands or ropes used for long periods.
Internal corrosion usually occurs between wires, strands, or around the rope core. It is difficult to detect from the surface.
Non-destructive testing can help evaluate the internal corrosion condition and determine whether the steel wire rope still has enough safety margin.

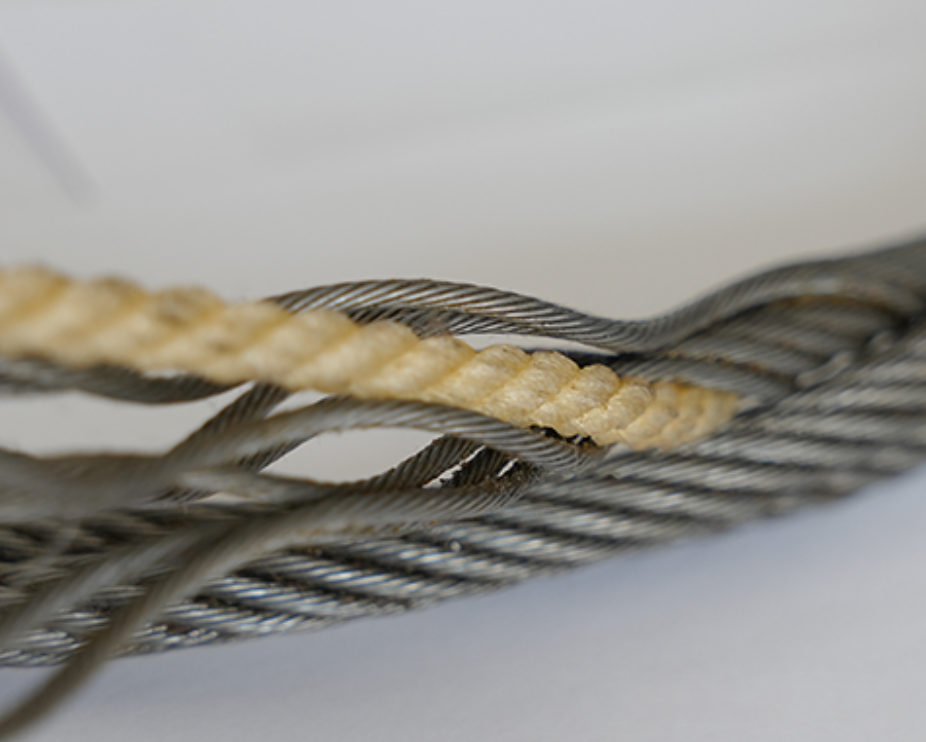

The rope core plays an important role in supporting the strands and maintaining the rope structure. Inspectors may check whether the fiber core or steel core is damaged, loosened, dry, or poorly lubricated.
A damaged core may lead to strand looseness, uneven load distribution, and faster rope failure.
Dimensional inspection helps confirm whether the wire rope meets the required specifications and whether its structure has changed during use.
Diameter measurement is one of the most important inspection items. The rope diameter should be measured at different positions and in different directions to check for wear, deformation, or structural change.
A significant diameter reduction may indicate wear, corrosion, or core damage. A local diameter increase may indicate internal deformation or strand displacement.
Length inspection is used to confirm whether the actual rope length meets the design or application requirements.
This is especially important for lifting systems, elevators, cranes, and other equipment where rope length affects installation accuracy and operating safety.
Lay length refers to the distance in which one strand makes a complete turn around the rope core. Measuring the lay length helps determine whether the rope structure is stable.
Changes in lay length may indicate rope stretching, twisting, loosening, or abnormal deformation.
Mechanical performance testing is used to evaluate the strength, stiffness, and fatigue resistance of steel wire rope.
The breaking strength test measures the maximum tensile force that the steel wire rope can withstand before failure.
This test is essential for evaluating the load-bearing capacity of the rope and confirming whether it meets the required safety standards.
The elastic modulus test measures the elastic deformation characteristics of the wire rope under load. It reflects the stiffness and elongation behavior of the rope.
This is important for applications where precise movement, load control, or structural stability is required.
Steel wire rope often works under repeated bending and loading conditions. Fatigue testing simulates actual working conditions to evaluate the rope’s fatigue life.
This test is especially important for crane wire rope, elevator rope, mining hoist rope, and other ropes that operate frequently.
Steel wire rope inspection is an important part of safe operation and maintenance. A complete inspection should cover visual defects, internal damage, dimensional changes, and mechanical performance.
By regularly checking broken wires, wear, corrosion, deformation, internal defects, rope diameter, lay length, breaking strength, and fatigue performance, users can reduce safety risks, extend service life, and ensure reliable performance in demanding applications.
Choosing the right inspection method and following a regular maintenance schedule can help prevent accidents and keep steel wire rope working safely and efficiently.
