Steel Wire Rope Design: Key Factors for Optimal Performance in Lifting And Rigging Applications

Steel wire rope is a flexible load-bearing component made by twisting multiple steel wires together. It is widely used in industries such as lifting, transportation, elevators, mining, and bridge construction. The design of steel wire ropes must consider several factors such as load capacity, safety, durability, and environmental conditions. Below are the core aspects of steel wire rope design:

1. Understanding Usage Scenarios and Load Analysis

The design of steel wire rope begins with a clear understanding of its intended usage, such as lifting, traction, binding, or elevator suspension. Based on these use cases, a thorough analysis of the load types is essential to ensure that the rope meets the actual requirements.

• Static Loads: These refer to stable loads, such as those placed on bridge cables. The steel wire rope must be designed to handle constant tension forces over time.

• Dynamic Loads: Dynamic forces occur when the rope is in motion, such as during lifting operations where acceleration or braking is involved. The design must account for additional forces due to acceleration, typically ranging from 1.1 to 1.3 times the static load.

• Shock Loads: These are sudden forces applied during emergencies, such as rapid deceleration or falling objects. Shock loads can be significantly higher than static loads, potentially up to 2-3 times the original load. A dynamic mechanical model is needed to calculate peak loads for these scenarios.

• Additional Loads: Environmental factors like wind and vibration, or the weight of the equipment itself, can add extra forces. These should be factored into the overall load calculation.

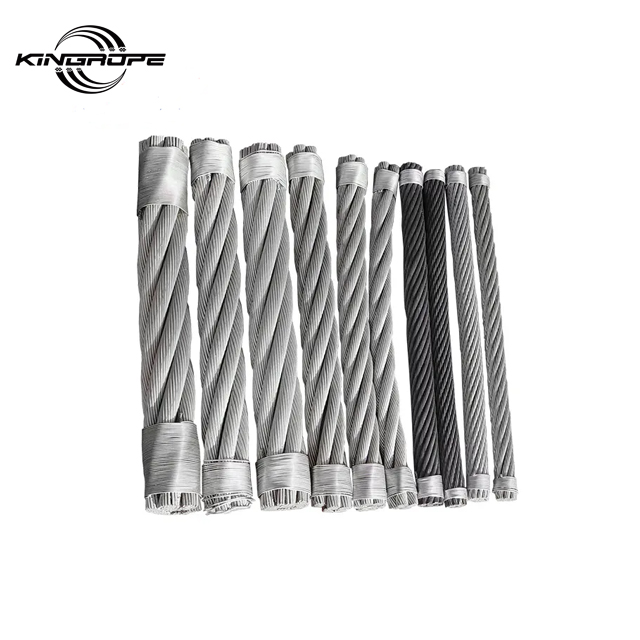

2. Key Structural Parameters in Steel Wire Rope Design

The structure of a steel wire rope greatly affects its strength, flexibility, wear resistance, and overall lifespan. The following core parameters need to be carefully considered:

• Number of Strands and Wires:

• Number of Strands: Common configurations include 6-strand and 8-strand ropes. Multi-strand structures (such as 6×19 or 6×37) provide better flexibility, making them ideal for applications requiring frequent bending, such as elevators. Single-strand ropes (such as 1×37) offer greater rigidity, suitable for straight-line traction.

• Number of Wires per Strand: More wires per strand increase flexibility but may reduce wear resistance as the individual wire diameters become smaller. For example, 6×19 ropes (19 wires per strand) are suited for medium to high-strength applications, while 6×37 ropes (37 wires per strand) offer greater flexibility for frequent bending.

• Wire Diameter:

Larger wire diameters increase the rope's wear resistance and shear strength, but may reduce flexibility. For example, mining hoists often use ropes with wire diameters between 15mm and 30mm. The optimal diameter should balance load-bearing requirements and bending frequency.

• Lay Direction and Lay Length:

• Lay Direction: The lay direction (right-hand or left-hand, and alternate or same direction lay) affects how the rope twists under load. For lifting operations, alternating lay directions are commonly used to minimize twisting during lifting.

• Lay Length: The lay length refers to the distance over which the wire strands make one complete revolution around the core. It is typically 6-8 times the diameter of the rope. A smaller lay length can result in stress concentration, while an excessively long lay length can lead to a loose structure.

The design of steel wire ropes is a complex process that requires an understanding of the specific usage scenario and load conditions. The key parameters, including strand and wire counts, wire diameter, and lay characteristics, must be carefully balanced to ensure the steel wire rope performs reliably under the expected operational conditions. By considering these design elements, steel wire ropes can provide optimal safety, flexibility, and durability in a wide range of industrial applications.
