Ungalvanized steel wire rope

  • Elevator Ungalvanized 10mm Steel Wire Rope
    The classification of wire rope includes most 6 strand , round strand ropes having 27 to 49 wires per strand. While 6 x 19 ropes give primary emphasis to abrasion resistance in varying degrees, the 6 x 37 ropes are important for their fatigue resistance. This fatigue resistance is made possible by the greater number of small wires per strand. Because of this emphasis on fatigue resistance the problem of choice within the 6 x 37 classification is greatly reduced. Although there are exceptions for special applications, the constructions in the 6 x 37 classifications are primarily designed to be the most efficient for each rope diameter. As the rope size increases, for instance, a large number of wires can be used to achieve required fatigue resistance and still those wires will be large enough to offer adequate resistance to abrasion. In sizes over 2 inches the 6 x 49 SWS would be so small that their resistance to abrasion would be a problem.

    It should be noted that the greater number of wires makes the
    6 x 37 classification more susceptible to crushing. This however,
    can frequently be overcome by an independent wire rope core
    and the use of well designed sheaves and grooved drums

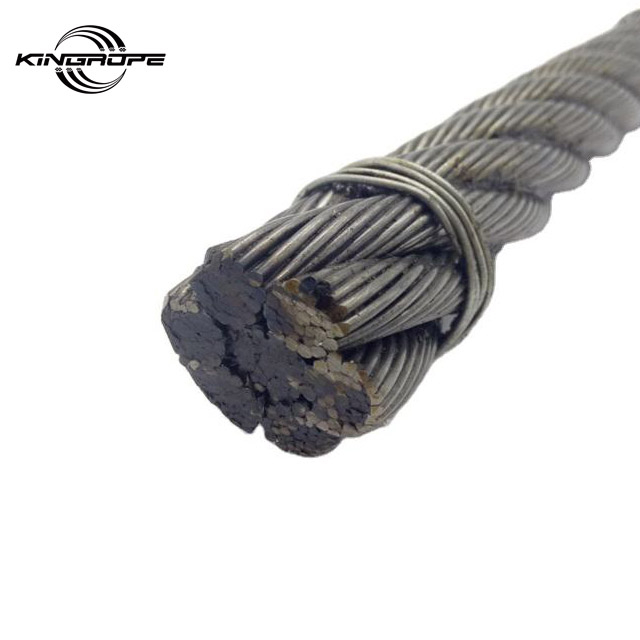

  • 6x37 Ungalvanized Steel Wire Rope with Grease for Marine Lifting
    The classification of wire rope includes most 6 strand , round strand ropes having 27 to 49 wires per strand. While 6 x 19 ropes give primary emphasis to abrasion resistance in varying degrees, the 6 x 37 ropes are important for their fatigue resistance. This fatigue resistance is made possible by the greater number of small wires per strand. Because of this emphasis on fatigue resistance the problem of choice within the 6 x 37 classification is greatly reduced. Although there are exceptions for special applications, the constructions in the 6 x 37 classifications are primarily designed to be the most efficient for each rope diameter. As the rope size increases, for instance, a large number of wires can be used to achieve required fatigue resistance and still those wires will be large enough to offer adequate resistance to abrasion. In sizes over 2 inches the 6 x 49 SWS would be so small that their resistance to abrasion would be a problem.

    It should be noted that the greater number of wires makes the
    6 x 37 classification more susceptible to crushing. This however,
    can frequently be overcome by an independent wire rope core
    and the use of well designed sheaves and grooved drums
  • ASTM Standard 6x37 +iwrc Galvanized Steel Wire Rope with Grease for Mining Rope
    The 6 x 37 classification of wire rope includes most 6 strand , round strand ropes having 27 to 49 wires per strand. While 6 x 19 ropes give primary emphasis to abrasion resistance in varying degrees, the 6 x 37 ropes are important for their fatigue resistance. This fatigue resistance is made possible by the greater number of small wires per strand. Because of this emphasis on fatigue resistance the problem of choice within the 6 x 37 classification is greatly reduced. Although there are exceptions for special applications, the constructions in the 6 x 37 classifications are primarily designed to be the most efficient for each rope diameter. As the rope size increases, for instance, a large number of wires can be used to achieve required fatigue resistance and still those wires will be large enough to offer adequate resistance to abrasion. In sizes over 2 inches the 6 x 49 SWS would be so small that their resistance to abrasion would be a problem.

    It should be noted that the greater number of wires makes the
    6 x 37 classification more susceptible to crushing. This however,
    can frequently be overcome by an independent wire rope core
    and the use of well designed sheaves and grooved drums
  • Water Well Drilling Oil Drilling Use 6X19s Steel Wire Rope Iwrc FC 12.7mm 16mm 25.4mm
    6x19S construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6x19 constructions.      • Size -   6mm-22mm    • Material - Carbon Steel    • Surface - Galvanized    • Technology - Laid    • Structure - 6X19S
  • 14mm 28mm Wire Rope 6X37 for Mining
    The 6 x 37 classification of wire rope includes most 6 strand , round strand ropes having 27 to 49 wires per strand. While 6 x 19 ropes give primary emphasis to abrasion resistance in varying degrees, the 6 x 37 ropes are important for their fatigue resistance. This fatigue resistance is made possible by the greater number of small wires per strand. Because of this emphasis on fatigue resistance the problem of choice within the 6 x 37 classification is greatly reduced. Although there are exceptions for special applications, the constructions in the 6 x 37 classifications are primarily designed to be the most efficient for each rope diameter. As the rope size increases, for instance, a large number of wires can be used to achieve required fatigue resistance and still those wires will be large enough to offer adequate resistance to abrasion. In sizes over 2 inches the 6 x 49 SWS would be so small that their resistance to abrasion would be a problem.

    It should be noted that the greater number of wires makes the
    6 x 37 classification more susceptible to crushing. This however,
    can frequently be overcome by an independent wire rope core
    and the use of well designed sheaves and grooved drums
  • Compacted Wire Rope 4V*39S+5FC 14MM 33MM 34MM For Crane
     This product is equal laid rope. The index of metal filing is high. The strand structure is tight. When the steel wire rope is underworking, the contact stress between wires is small and no secondary bending stress and the contact area between steel wire rope and pulleygroove is large, so the this steel wire rope has characters of wear resistance, fatigue resistance, anti-extrusion performance and easily deformed. Features: The contact between wires is equal laid. The strands of rope are spiral surface contact When the steel wire rope is loading, thecontact stress between strands is small, and then the service life is correspondingly longer. Wire interactive twisted, and then the backwashforce is small.      • Size -   8mm-40mm    • Material - Carbon Steel    • Surface - galvanized or ungalvanized    • Technology - Laid    • Structure - 4VX39S+5FC
  • 20mm 30mm Wire Rope 6X37 IWRC Steel Core Wire Rope
    The 6 x 37 classification of wire rope includes most 6 strand , round strand ropes having 27 to 49 wires per strand. While 6 x 19 ropes give primary emphasis to abrasion resistance in varying degrees, the 6 x 37 ropes are important for their fatigue resistance. This fatigue resistance is made possible by the greater number of small wires per strand. Because of this emphasis on fatigue resistance the problem of choice within the 6 x 37 classification is greatly reduced. Although there are exceptions for special applications, the constructions in the 6 x 37 classifications are primarily designed to be the most efficient for each rope diameter. As the rope size increases, for instance, a large number of wires can be used to achieve required fatigue resistance and still those wires will be large enough to offer adequate resistance to abrasion. In sizes over 2 inches the 6 x 49 SWS would be so small that their resistance to abrasion would be a problem.

    It should be noted that the greater number of wires makes the
    6 x 37 classification more susceptible to crushing. This however,
    can frequently be overcome by an independent wire rope core
    and the use of well designed sheaves and grooved drums

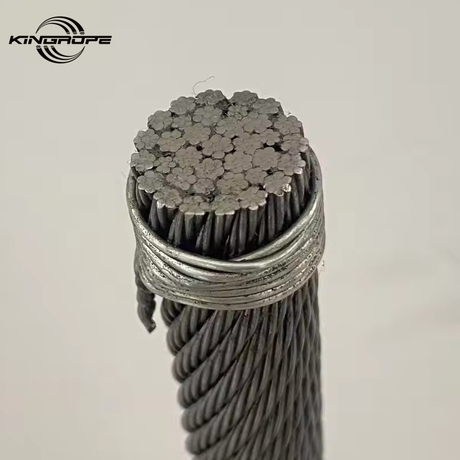

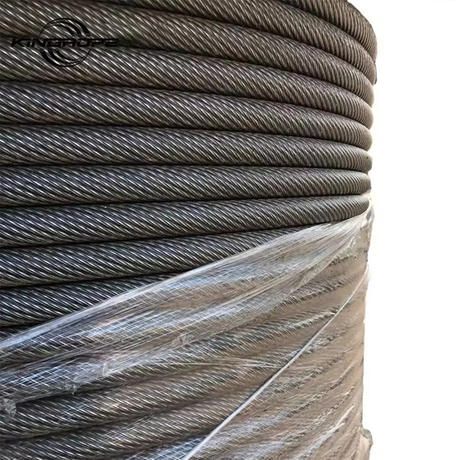

  • High Tensile Strength Anti Twist Steel Wire Rope 18X7 17X7 for Cableway 10mm 15mm 20mm
    This compacted wire rope construction is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 17X7, 18X7 and 19X7. For further flexibility and other performance characteristics we also supply 32X7, 35X7 and 37X7.       • Size -   3mm-50mm    • Material - Carbon Steel     • Surface - Bright(ungalvanized), Galvanized, stainless, PVC or Grease    • Technology - Right regular lay, Left regular lay, Right lang lay, Left lang lay    • Structure - 18*7 19*7

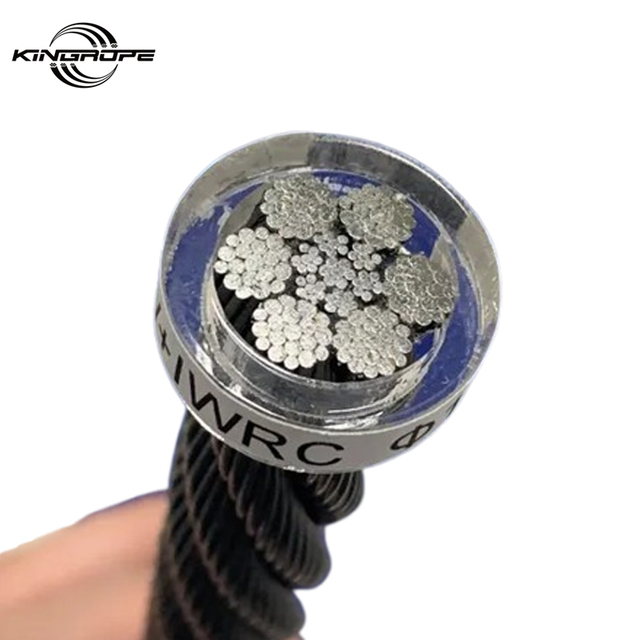

  • General Use 6x19 FC IWRC Steel Wire Rope 9mm 10mm 12mm
    This 6x19 wire rope construction is available with either FC (fibre core) or WSC (wire strand core). When supplied with a wsc the rope is more commonly referred to as 7x19. The rope is very popular in diameters from 3mm to 16mm and is used on a variety of applications. 6x19 FC and 6x19 WSC (7x19) is very flexible in diameters 3mm to 6mm and is used for many applications where wire ropes are running over pulleys. 7x19 construction is readily available in both galvanised and marine grade stainless steel.       • Size -   3mm-40mm    • Material - Carbon Steel 45# 60# 70#    • Surface - Galvanized,  ungalvanized    • Technology - Laid    • Structure - 6x19
  • Lifting Wire Rope 18*19+FC Steel Cable
    This compacted wire rope construction is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 17X7, 18X7 and 19X7. For further flexibility and other performance characteristics we also supply 32X7, 35X7 and 37X7.       • Size -   3mm-50mm    • Material - Carbon Steel     • Surface - Bright(ungalvanized), Galvanized, stainless, PVC or Grease    • Technology - Right regular lay, Left regular lay, Right lang lay, Left lang lay    • Structure - 18*7 19*7
